Venn Diagram Survey
Minimum Vertex Symmetric 7-Venn Diagrams
[
polar
|
non-polar
]
Polar Symmetric
Shown below is a minimum vertex polar symmetric Venn diagram for
n
= 7; it was discovered by Stirling Chow and Frank Ruskey [
CR98

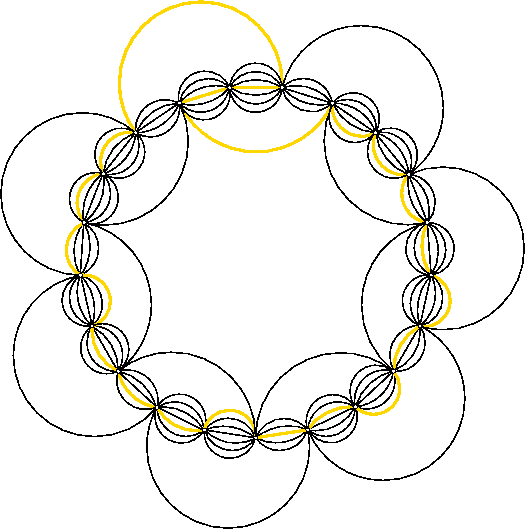

]. The first diagram has a single curve highlighted.

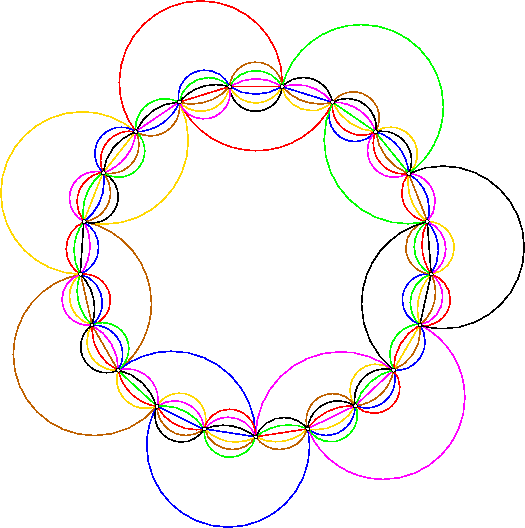

The same diagram, with all curves colored:
Non-polar Symmetric
This diagram is a minimum vertex
non
-polar symmetric diagram for
n
=7. With a single curve coloured:
All curves colored:
