# Venn Diagram Survey What is a Venn Diagram? Do They Always Exist?

## What is a Venn Diagram?

We follow Grünbaum [Gr75] in first defining a more general concept, an independent family. Let C = { C1,...,Cn} be a collection of simple closed curves drawn in the plane. The collection C is said to be an independent family if the intersection of X1, X2, ..., Xn is nonempty, where each Xi is either int(Ci) (the interior of Ci) or is ext(Ci) (the exterior of Ci). If, in addition, each such intersection is connected, then C is a Venn diagram, or an n-Venn diagram if we wish to emphasize the number of curves in the diagram.

On the left we show the most familiar of all Venn diagrams. In this case n=3, the simple closed curves are all circles, and in the leftmost diagram the 8 regions have been labelled with the interiors that are included in each intersection. The eighth region is the outside, corresponding to the empty set. The colored diagram has all 1-sets colored yellow, all 2-sets red, and the 3-set blue. This diagram also occurs as a minimal projection of the Borromean Rings.

On the left we show an example, for n=4, of an independent family that is not a Venn diagram. Here the simple closed curves are each congruent triangles, which are colored red, blue, green, and gold. Note that the intersection of the interiors of the red and blue triangles with the exteriors of the green and gold triangles gives a disconnected region, the shaded region(s) in the figure.

A simple Venn diagram is one in which (a) no two curves intersect in more than finitely many points (i.e., the curves meet at points and not in segments of curves), and (b) no three (or more) curves intersect at a common point. Unless stated otherwise, we assume simple Venn diagams. Venn diagrams not meeting criteria (a) are rarely, if ever, discussed in the literature.

## Do they always exist?

Above we saw that Venn diagrams exist for n = 3, and it is easy to see (for example, by removing circles) that Venn diagrams exist for n = 1,2. Diagrams exist for all larger values of n as well; there have been several general constructions published and we explain two of them below.

### Venn's Construction

Venn's construction, outlined in his original paper [Ve80], is best explained by considering the figure to the right. Start with the 3 circle diagram. Curves are successively added, with the new curve tracing the one last added and dividing each existing region in two. In the figure they are added in the order blue (4), red (5), and green (6). It should be clear where the seventh curve would be drawn.

### Edwards' Construction

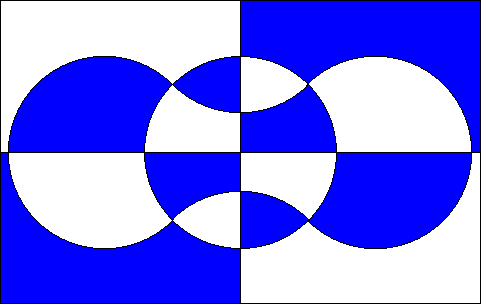

Anthony Edwards [Ed89a], [Ed89b] developed another general inductive construction that has several nice properties, including some symmetry. It is also best explained by means of an example; refer to the diagram on the left. For n=2 the diagram consists of two perpendicular lines. (Strictly speaking we have to join the endpoints of these lines to make them into simple closed curves.) For n=3 a circle is added. Successive curves will all be added that follow this circle, weaving back and forth along the circle, again dividing each region in two. For n=4,5,6 the blue, red, and green curves are added, in that order.

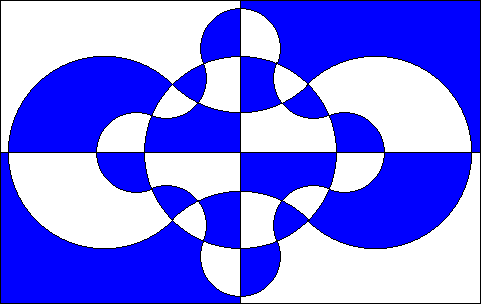

These diagrams have very attractive bipartite colorings as can be seen below. The reason for calling these colorings "bipartite" is explained in the next section, Graphs Associated with Venn Diagrams.
