THE ELECTRONIC JOURNAL OF COMBINATORICS 7 (2000), DS#7.


Packing Unit Squares in Squares:
A Survey and New Results

Erich Friedman
Stetson University, DeLand, FL 32723
efriedma@stetson.edu



Abstract

Let s(n) be the side of the smallest square into which we can pack n unit squares. We improve the best known upper bounds for s(n) when n = 26, 37, 39, 50, 54, 69, 70, 85, 86, and 88. We present relatively simple proofs for the values of s(n) when n = 2, 3, 5, 8, 15, 24, and 35, and more complicated proofs for n=7 and 14. We also prove many other lower bounds for various s(n). We also give the best known packings for n100.



1 Introduction

The problem of packing equal circles in a square has been around for some 30 years and has seen much recent progress [2]. The problem of packing equal squares in a square is less well known. Results seem to be more difficult, as the computer-aided methods available for circles do not generalize for squares. We intend to give some packings which improve upon those in the literature, illustrate a technique for obtaining lower bounds, and exhibit the best known packings for less than one hundred squares.

Let s(n) be the side of the smallest square into which we can pack n unit squares. It is clear that n s(n) n, the first inequality coming from area considerations, and the second coming from the facts that s(n) is non-decreasing and s(n2)=n. It is not hard to show that s(2)=s(3)=2. It is a little harder to show that s(5)=2+1/ [7].

The number of claims far outweighs the number of published results in this area. Göbel says that Schrijver claims that Bajmóoczy proved s(7)=s(8)=3 [7]. Walter Stromquist claimed to have proved s(6)=3 and s(10)=3+1/, and claimed to know how to prove s(14)=s(15)=4 and s(24)=5 [13]. Said El Moumni recently claimed to have proved s(6)=s(7)=s(8)=3 and s(14)=s(15)=4 [12]. None of these proofs have been published. Finally, in 2002, Kearney and Shiu published a proof of s(6)=3 [9]. We prove all the known values of s(n) for n not equal to 6: square n and n=2, 3, 5, 7, 8, 14, 15, 24, and 35. There are many other good packings thought to be optimal, but as of yet no proofs.

Previous results can be found in Section 2. Our improved packings appear in Section 3. In Section 4 we prove some technical lemmas that we use in Section 5 to prove the values of s(n) mentioned above. Lists of the best known upper and lower bounds for s(n) are given in the Appendix. Many of the results given are taken from unpublished letters and manuscripts, and private communications.



2 Previous Results

Göbel was the first to publish on the subject [7]. He found that a2+a+3+(a-1) squares can be packed in a square of side a+1+1/ by placing a diagonal strip of squares at a 45o angle. This gives the best known packings for all values of a except for a=3 (see Figure 1).



s(5)=2+1/


s(10)=3+1/



s(27)5+1/


s(38)6+1/



s(52)7+1/


s(67)8+1/



s(84)9+1/

Figure 1.

By unrotating some rotated squares in the corner, we get alternate packings for n=10, 38, 67, and 84. (see Figure 2).



s(10)=3+1/


s(38)6+1/



s(67)8+1/


s(84)9+1/



s(84)9+1/

Figure 2.

It is clear that n+2s(n)+1 squares can be packed in a square of side s(n)+1 by packing n squares inside a square of side s(n) and putting the other squares in an "L" around it. The packings in Figure 2 are of this form. Packings not containing an "L" of squares we will call primitive packings. From now on, we will only illustrate primitive packings.

Göbel also found that if integers a and b satisfied a-1<b/<a+1, then 2a2+2a+b2 squares can be packed inside a square of side a+1+b/. This is accomplished by placing a b x b square of squares at a 45o angle in the center. This gives the best known packings for 28, 40, 65, and 89 squares (see Figure 3).

Adding "L"s of squares around the packing of 40 squares gives the best known packings of 53 and 68 squares. Adding an "L" around the packing of 65 squares gives the best known packing of 82 squares.



s(28)3+2


s(40)4+2



s(65)5+5/


s(89)5+7/
Figure 3.

Charles Cottingham, who improved some of Göbel's packings for n49, was the first to use diagonal strips of width 2 [6]. In 1979, he found the best known packing of 41 squares (see Figure 4). Although it is hard to see, the diagonal squares touch only the squares in the upper right and lower left corners.

Soon after Cottingham produced a packing of 19 squares with a diagonal strip of width 2, Robert Wainwright improved Cottingham's packing slightly (see Figure 4) [4]. This is still the best known packing of 19 squares.



s(41)2+7/


s(19)3+4/3
Figure 4.

In 1980, Evert Stenlund improved many of Cottingham's packings, and provided packings for n100 [6]. His packing of 66 squares uses a diagonal strip of width 3 (see Figure 5). In this packing, the diagonal squares touch only the squares in the upper right and lower left corners. Adding an "L" to this packing gives the best known packing of 83 squares.



s(66)3+4

Figure 5.

Note that a diagonal strip of width 2 or 3 must be off center in order to be optimal. Otherwise one could place at least as many squares by not rotating them.

Stenlund also modified a diagonal strip of width 4 to pack 87 squares (see Figure 6). There is a thin space between two of the diagonal strips. Compare this with the packing of 19 squares in Figure 4.



s(87)(14+11)/3

Figure 6.

Diagonal strips of width 4 also give alternative optimal packings of 53 and 68 squares (see Figure 7).



s(53)5+2


s(68)6+2
Figure 7.

The best known packings for many values of n are more complicated. Many seem to require packing with squares at angles other than 0o and 45o. In 1979, Walter Trump improved Göbel's packing of 11 squares (see Figure 8). Many people have independently discovered this packing. The original discovery has been incorrectly attributed to Gustafson and Thule [11]. The middle squares are tilted about 40.182o, and there is a small gap between these squares.



s(11)3.8772

Figure 8.

In 1980, Hämäläinen improved on Göbel's packing of 18 squares (see Figure 9) [6]. In 1981, Mats Gustafson found an alternative optimal packing of 18 squares (see Figure 9). The middle squares in these packings are tilted by an angle of arcsin((7-1)/4)24.295o.



s(18)(7+7)/2


s(18)(7+7)/2
Figure 9.

In 1980, Pertti Hämäläinen improved Göbel's packing of 17 squares using a different arrangement of squares at a 45o angle. But in 1998, John Bidwell, an undergraduate student at the University of Hawaii, improved this packing (see figure 10). It is the smallest example where the best known packing contains squares at three different angles.

Also in 1998, I improved the best known packing of 29 squares using a modified diagonal strip of width 2. A few months later, Bidwell improved my packing slightly (see figure 10) [1].



s(17)4.6755


s(29)5.9648
Figure 10.

In [3], Erdös and Graham define W(s)=s2-max{n:s(n)s}. Thus W(s) is the wasted area in the optimal packing of unit squares into an s x s square. They show (by constructing explicit packings) that W(s)=O(s7/11). In [10], it is mentioned that Montgomery has improved this result to W(s)=O(s3-3/2+ ) for every >0.

In [10], Roth and Vaughan establish a non-trivial lower bound for W(s). They show that if s(s-s)>1/6, then W(s)10-100(s | s-s+1/2 | ). This implies that W(s) is not O(s) when <1/2.

It was conjectured that s(n2-n)=n whenever n is small. The smallest known counterexample of this conjecture, due to Lars Cleemann, is s(172-17)<17. 272 squares can be packed into a square of side 17 in such a way that the the square can be squeezed together slightly (see Figure 11). Three squares are tilted by an angle of 45o, and the other tilted squares are tilted by an angle of arctan(8/15).

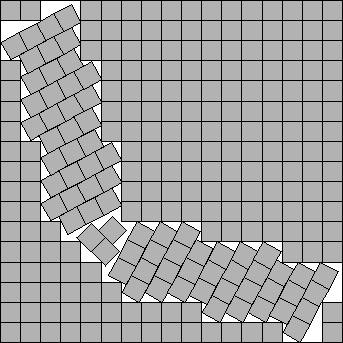

s(272)<17

Figure 11.



3 New Packings

We can generalize the packings in Figure 3 by placing the central square a little off center. We can pack 2a2+2a+b2 squares in a rectangle with sides a+1/2+b/ and a+3/2+b/. Adding a column of squares to the side of this, we get a packing of 2a2+4a+b2+1 squares in a square of side a+3/2+b/. This gives the best known packings for 26 and 85 squares (see Figure 12).



s(26)(7+3)/2


s(85)11/2+3
Figure 12.

We can generalize Stenlund's packing of 41 squares in Figure 4 to packings of 70 and 88 squares (see Figure 13).



s(70)15/2+23


s(88)17/2+
Figure 13.

We can modify a diagonal strip of 2 squares to get an optimal packing of 54 squares (see Figure 14). Compare this with the packing of 19 squares in Figure 4. We can pack 9n2+8n+2 squares in a square of side 3n+4/3 in this fashion.

We can also modify a strip of width 4 to get the best known packing of 69 squares by enlarging the bounding square and rearranging the upper right hand corner (see Figure 14). The diagonal squares touch only the squares in the upper right and lower left corners.



s(54)6+4/3


s(69)(5+9)/2
Figure 14.

We can generalize the packings in Figure 9 to provide the best known packings of 39 and 86 squares (see Figure 15). The angle of the tilted squares is the same as in that Figure.



s(39)(11+7)/2


s(86)(17+7)/2
Figure 15.

Our new packing of 37 squares uses a modified diagonal strip of width 3 (see Figure 16). The tilted squares contact the other squares in 3 places. The slanted squares are tilted at an agle of approximately 51.100o. Adding an ``L'' to this packing of 37 squares gives the best known packing of 50 squares.



s(37)6.6213

Figure 16.

Finally, we make the following conjecture:

Conjecture 1. If s(n2-k)=n, then s( (n+1)2-k)=n+1.

That is, if omitting k squares from an n x n square does not admit a smaller packing, then the same will be true for omitting k squares from any larger perfect square packing. This is true of all the best known packings.



4 Technical Lemmas

Lemma 1. Any unit square inside the first quadrant whose center is in [0,1]2 contains the point (1,1).

Proof: It suffices to show that a unit square in the first quadrant that touches the x-axis and y-axis contains the point (1,1). If the square is at an angle , it contains the points (sin,0) and (0,cos) (see Figure 17). The two other corners of the square, (cos,cos+sin) and (cos+sin,sin), lie on the line y - sin = -cot (x - sin - cos). In particular, when x=1,

y = [sin2 - cos (1 - sin - cos)] / sin = [(1 - sin) (1 - cos) + sin] / sin 1.



Figure 17.

Lemma 2. Let 0<x1, 0<y1, and x+2y<2. Then any unit square inside the first quadrant whose center is contained in [1,1+x]x[0,y] contains either the point (1,y) or the point (1+x,y).

Proof: It suffices to show that a unit square u whose center is contained in [1,1+x]x[0,y] that contains the points (1,y) and (1+x,y) on its boundary contains a point on the x-axis. This is true if (1,y) and (1+x,y) lie on the same side of u. If u is at an angle , then the lowest corner of the square is

(1 + x + (1 - x sin) sin - cos , y - (1 - x sin) cos - sin)

(see Figure 18). This point lies outside the first quadrant when f() = cos + sin - x sin cos > y. Since

f'() = (cos - sin) [1 - x (cos + sin)],

the critical points of f() are

(cos,sin)=(1/,1/) and (cos,sin) = (1 ± (2x2-1) / 2x , 1 (2x2-1) / 2x).

Checking these 3 values and the endpoints, the global minimum of f() occurs at =45o. Therefore, when y<-x/2, u contains some point of the x-axis.



Figure 18.

Lemma 3. If the center of a unit square u is contained in ABC, and each side of the triangle has length no more than 1, then u contains A, B, or C.

Proof: The diagonals of u divide the plane into 4 regions, labeled clockwise as R1, R2, R3, and R4 (see Figure 19). These regions are closed, and intersect only on the diagonals. The points A, B, and C cannot all be on one side of either one of these diagonals, for then ABC would not contain the center of u. Thus either both R1 and R3 contain vertices of the triangle, or both R2 and R4 do. In either case, two vertices of ABC are closest to two opposite sides of u. Since the distance between these vertices is no more than 1, u must contain at least one of these points.



Figure 19.

Lemma 4. If the center of a unit square u is contained in the rectangle R=[0,1]x[0,.4], then u contains a vertex of R.

Proof: Let A=(0,0), B=(0,.4), C=(1,0), and D=(1,.4). It suffices to show that any u that contains A and B on its boundary and whose center is in R contains either C or D (see Figure 20). This is clearly the case if A and B lie on the same side of u. When =45o, u contains both C and D. It is easy to see that when <45o, u contains D, and when >45o, u contains C.



Figure 20.

Lemma 5. If a unit square has its center below the line y=1, and is entirely above the x-axis, then the length of the intersection of the line y=1 with the square is at least 2-2.

Proof: Let L be the line y=1. Since the center of the square is below L, 2 or fewer corners of the square are above L. If 2 corners are above L, then L intersects 2 opposite sides of the square, and therefore the intersection has length at least 1. If none of the corners are above L, 2 corners sit on the x-axis, and the length of the intersection is exactly 1. We therefore assume 1 corner is above L. In this case, the intersection is made smaller by moving the square downwards until one of the corners is touching the x-axis.

If the square makes an angle with the x-axis, the vertical line segment in Figure 21 has length (sin + cos - 1), so the length of the intersection with L is

D = (sin + cos - 1) (tan + cot) = (sin + cos - 1) / (sin cos).

This is minimized when dD/d = (sin - cos) (1 - cos) (1 - sin) / (cos2 sin2) = 0, which occurs at =45o. Thus D2-2.



Figure 21.

Lemma 6. If a unit square has its center in the region [0,1]2, does not contain either of the points (0,1) and (1,1), and is entirely above the x-axis, then the square covers some point (0,y) for 1/2y1 and some point (1,y) for 1/2y1.

Proof: Lowering the square until it touches the x-axis lowers any points of intersection with the y-axis. Moving the square right until it touches the point (1,1) makes any intersection with the y-axis smaller. We will show that any such square touching the x-axis and the point (1,1) covers some point (0,y) for 1/2y1. The rest of the lemma follows from symmetry.

If x is the distance in Figure 22, then sin + x cos = 1, or x = (1 - sin) / cos. This means the x-intercept of the square is

1 + x sin - cos = 1 + tan (1 - sin) - cos.

Therefore the left corner of the square is (1 + tan (1 - sin) - cos - sin , cos). This means the largest y-intercept of the square is

D = cos - tan (1 + tan (1 - sin) - cos - sin) = (cos3 + sin (1 - cos) (1 - sin)) / cos2.

Since dD/d = (1 - cos - sin) (1 - sin) / cos3 < 0, the minimum value of D is the limit of D as approaches 90o, which is 1/2 by L' Hôpital's Rule.



Figure 22.

Lemma 7. If a unit square has its center in the region [0,1]2, does not contain either of the points (0,1) or (1,1), and is entirely above the x-axis, then the square covers either the point (0,-1/2) or the point (1,-1/2).

Proof: Lemma 2 shows that the center of the square cannot have y-coordinate less than or equal to -1/2 without covering one of these points. Lemma 4 shows that the center of the square cannot have y-coordinate more than -1/2 without covering one of these points.



5 Lower Bounds

To show that s(n)k, we will modify a method used by Walter Stromquist [13]. We will find a set P of (n-1) points in a square S of side k so that any unit square in S contains an element of P (possibly on its boundary). Shrinking these by a factor of (1-/k) gives a set P' of (n-1) points in a square S' of side (k-) so that any unit square in S' contains an element in P' in its interior. Therefore no more than (n-1) non-overlapping squares can be packed into a square of side (k-), and s(n)>k-. Since this is true for all >0, we must have s(n)k.

We call P a set of unavoidable points in S. We now prove lower bounds on s(n) by showing that certain sets of points are unavoidable.

Theorem 1. s(2)=s(3)=2.

Proof: Consider a unit square u in [0,2]2. Since the center of u is either in [0,1]2 or [0,1]x[1,2] or [1,2]x[0,1] or [1,2]2, Lemma 1 shows that u contains the point (1,1). That is, the set P={ (1,1) } is unavoidable in [0,2]2 (see Figure 23).



s(2)2

Figure 23.

Theorem 2. s(5)=2+1/.

Proof: The set P={ (1,1), (1,1+1/), (1+1/,1), (1+1/,1+1/) } is unavoidable in [0,2+1/]2. This follows from Lemma 1 if the center of the square is in a corner, from Lemma 2 if it is near a sides, and from Lemma 3 if it is in a triangle (see Figure 24).



s(5)2+1/

Figure 24.

Theorem 3. s(8)=3.

Proof: The set P={ (.9,1), (1.5,1), (2.1,1), (1.5,1.5), (.9,2), (1.5,2), (2.1,2) } is unavoidable in [0,3]2 by Lemmas 1, 2, and 3 (see Figure 25).



s(8)3

Figure 25.

Theorem 4. s(15)=4.

Proof: The set

P= { (1,1), (1.6,1), (2.4,1), (3,1), (1,1.8), (2,1.8), (3,1.8), (1,2.2), (2,2.2), (3,2.2), (1,3), (1.6,3), (2.4,3), (3,3) }

is unavoidable in [0,4]2 by Lemmas 1, 2, 3, and 4 (see Figure 26).



s(15)4

Figure 26.

Theorem 5. s(24)=5.

Proof: The set

P={ (1,1), (1.7,1), (2.5,1), (3.3,1), (4,1), (1,1.7), (2,1.7), (3,1.7), (4,1.7), (1,2.5), (1.5,2.5), (2.5,2.5), (3.5,2.5), (4,2.5), (1,3.3), (2,3.3), (3,3.3), (4,3.3), (1,4), (1.7,4), (2.5,4), (3.3,4), (4,4) }

is unavoidable in [0,5]2 by Lemmas 1, 2, and 3 (see Figure 27).



s(24)5

Figure 27.

Theorem 6. s(35)=6.

Proof: The set

P= { (1,.9), (2,.9), (3,.9), (4,.9), (5,.9), (1,1.725), (1.5,1.725), (2.5,1.725), (3.5,1.725), (4.5,1.725), (5,1.725), (1,2.55), (2,2.55), (3,2.55), (4,2.55), (5,2.55), (1,3.375), (1.5,3.375), (2.5,3.375), (3.5,3.375), (4.5,3.375), (5,3.375), (1,4.2), (2,4.2), (3,4.2), (4,4.2), (5,4.2), (1,5), (1.6,5), (2.4,5), (3,5), (3.6,5), (4.4,5), (5,5) }

is unavoidable in [0,5]2 by Lemmas 1, 2, and 3 (see Figure 28).



s(35)6

Figure 28.

The proofs that s(7)=3 and s(14)=4 are a little harder. We find sets of points which are almost unavoidable, which force squares into certain positions. We use Lemmas 5, 6, and 7 to show that certain regions are covered, and find sets of unavoidable points for the rest of the square.

Theorem 7. s(7)=3.

Proof: If 7 unit squares are packed in a square of side 3-, at most 5 squares cover the 5 points in the almost unavoidable set shown in Figure 29. Therefore at least two squares have their centers in the regions containing question marks.



Figure 29.

There are 2 possible placements of these 2 squares up to rotation and reflection. Figure 30 shows these possibilities. The shaded trapezoids show points that must be covered by squares in those regions because of Lemmas 5, 6, and 7. Actually, we have drawn the trapezoids with a y value of 1/2 in Lemma 6 because this is the worst case in what follows. Each diagram shows a set of 3 additional unavoidable points.

Figure 30.

Theorem 8. s(14)=4.

Proof: If 14 unit squares are packed in a square of side 4-, at most 12 squares cover the 12 points in the almost unavoidable set shown in Figure 31. Therefore at least two squares have their centers in the regions containing question marks.



Figure 31.

There are 5 possible placements of these 2 squares up to rotation and reflection. Figure 32 shows the 5 possibilities.



Figure 32.

Each diagram also shows a set of 11 additional unavoidable (or almost unavoidable) points. Some of these cases have additional cases, and these are shown in Figure 33.


Figure 33.

The other lower bounds known are probably not sharp. For example, Trevor Green has shown:

Theorem 9. s(n2+1) 2 - 1 + (n(n-1)2 + (n-1)*(2n)) / (n2+1).

Theorem 10. s(n2+n/2+1) 2 + 2(n-2)/5.

Unavoidable sets illustrating some of the lower bounds on s(n) are shown in Figure 34.



s(6)2


s(10)2+(1+6)/5



s(11)2+2/5


s(17)(40+19)/17



s(19)6-4

Figure 34.



Appendix

Table 1 contains the best known upper bounds on s(n) for n100. For each primitive packing, the Figure and the Author are given. We conjecture that most of these packings are optimal. The packings most likely to be improved include n=50, 51, 55, and 71.

ns(n)Optimal?FigureAuthor
11
2-42
52+1/2.7072Figure 1Göbel
6-93
103+1/3.7072 Figure 1Göbel
113.8772  Figure 8Trump
12-134
14-164
174.6755 Figure 10Bidwell
187/2+1/274.8229 Figure 9Hämäläinen
193+4/34.8857 Figure 4Wainwright
20-235
24-255
267/2+3/25.6214 Figure 12Friedman
275+1/5.7072 Figure 1Göbel
283+25.8285 Figure 3Göbel
295.9648  Figure 10Bidwell
30-346
35-366
376.6213  Figure 16Friedman
386+1/6.7072 Figure 1Göbel
3911/2+7/26.8229 Figure 15Friedman
404+26.8285 Figure 3Göbel
412+7/6.9498 Figure 4Cottingham
42-487
497
507.6213
51-527+1/7.7072 Figure 1Göbel
535+27.8285 Figure 7Stenlund
546+4/37.8857 Figure 14Friedman
55-638
648
655+5/8.5356 Figure 3Göbel
663+48.6569 Figure 5Stenlund
678+1/8.7072 Figure 1Göbel
686+28.8285 Figure 7Stenlund
695/2+9/8.8640 Figure 14Friedman
7015/2+8.9143 Figure 13Friedman
71-809
819
826+5/9.5356
834+49.6569
849+1/9.7072 Figure 1Göbel
8511/2+39.7427 Figure 12Friedman
8617/2+7/29.8229 Figure 15Friedman
8714/3+11/39.8522 Figure 6Stenlund
8817/2+9.9143 Figure 13Friedman
895+7/9.9498 Figure 3Stenlund
90-9910
10010

Table 1. Best known upper bounds for s(n)

Table 2 contains the best known non-trivial lower bounds on s(n) for n100, along with the Author.

ns(n)FigureAuthor
2-32Figure 23Göbel
52+1/2.7071Figure 24Göbel
63 Kearney and Shiu
73Figure 29Friedman
83Figure 25Friedman
102+(1+6)/53.5183Figure 34Green
11-122+2/53.7228Figure 34Green
133.8437 Friedman
144Figure 31Friedman
154Figure 26Friedman
17-18(40+19)/174.4452Figure 34Green
19-206-44.4852Figure 34Friedman
214.7438 Friedman
22-232+24.8284 Green
245Figure 27Friedman
26-272+(27+210)/135.3918 Green
28-302+6/55.5117 Green
315.6415 Green
356Figure 28Friedman
37-392+(113+103)/376.3506 Green
40-412+8/56.4061 Green
50-532+(101+314)/257.3174 Green
65-682+71/138.2899 Green
82-852+(288+123)/419.2667 Green

Table 2. Best known lower bounds for s(n)



References

[1] J. Bidwell, 1998, private communication.

[2] H. T. Croft, K. J. Falconer, and R. K. Guy, Unsolved Problems in Geometry, Springer Verlag, Berlin (1991) 108-110.

[3] P. Erdös and R. L. Graham, On packing squares with equal squares, J. Combin. Theory Ser. A 19 (1975) 119-123.

[4] M. Gardner, "Mathematical Games", Scientific American (Oct 1979, Nov 1979, Mar 1980, Nov 1980).

[5] M. Gardner, Fractal Music, Hypercards and More . . ., W. H. Freeman and Company, New York, 289-306.

[6] M. Gardner, 1998, private communication.

[7] F. Göbel, Geometrical packing and covering problems, in Packing and Covering in Combinatorics, A. Schrijver (ed.), Math Centrum Tracts 106 (1979) 179-199.

[8] T. Green, 2000, private communication.

[9] M. Kearney and P. Shiu, Efficient Packing of Unit Squares in a Square, Elect. J. Comb. 9 (2002). [10] K. F. Roth and R. C. Vaughan, Inefficiency in packing squares with unit squares, J. Combin. Theory Ser. A 24 (1978) 170-186.

[11] "Problem Ronden", Ronden (Apr 1980, Sep 1980, Dec 1980)

[12] S. El Moumni, 1999, private communication.

[13] W. Stromquist, "Packing Unit Squares Inside Squares III", unpublished manuscript, 1984.
