Venn Diagram Survey
Graphs Associated with Venn Diagrams

[planar dual | Venn different? | extend Venn | minimum Venn | congruent Venn]

The Planar Dual of a Venn Diagram

An n-Venn diagram C = {C1,...,Cn} may be regarded as a graph in two ways. The diagram itself can be thought of as an edge-colored plane5 graph V(C) whose vertices correspond to intersections of curves, and whose edges correspond to the segments of curves between intersections. Edges are colored according to the curve to which they belong. Following Chilakamarri, Hamburger, and Pippert [CHP], we overload the term and call this graph the Venn diagram. In an unlabelled Venn diagram we ignore the edge labels. As an example, the three circle Venn diagram has 6 vertices (corresponding to the 6 intersections) and 12 edges. Recall Euler's formula f = e - v + 2 relating the number of faces, edges, and vertices of a graph embedded in the plane. Assuming that no three curves intersect at a common point (i.e., a simple Venn diagram), we have e = 2v. By definition the number of faces is f = 2n. It thus follows that v = 2n - 2 and e = 2n+1 - 4 for simple Venn diagrams.

Two curves can meet at a point transversally or not, depending on whether the two curves cross. A moment's reflection will convince you that the curves in a simple Venn diagram must meet transversally. More generally, at any point of intersection in a Venn diagram, there must be at least two curves that meet transversally.

With each Venn diagram, C, we may associate another plane graph called the Venn graph, and denoted G(C), which is the planar dual of the Venn diagram. It's vertices are the connected open regions (faces) from the definition of Venn diagrams. Two vertices are connected by an edge if they share a common boundary. By default the edges are colored (by the color of the corresponding edge in the Venn diagram); if not, it is called an unlabelled Venn graph. For example, the unlabelled Venn graph of the three circle Venn diagram is an embedding of the 3-cube, Q3. Clearly, every n-Venn graph is a planar spanning subgraph of the n-cube, Qn. If C is a simple Venn diagram, then every face of G(C) is a quadrilateral, and thus G(C) is a maximal bipartite8 planar graph.

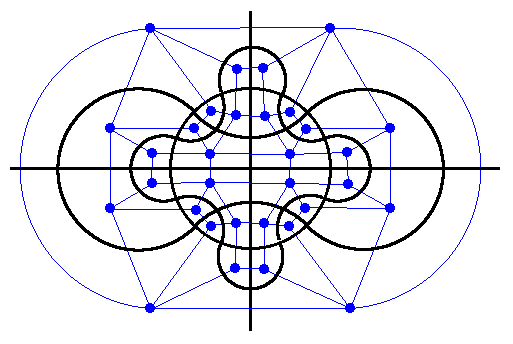

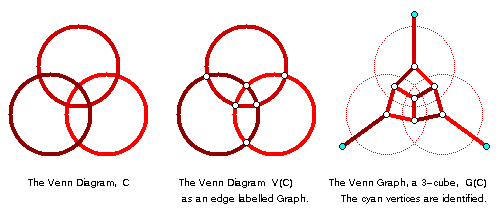

Above we illustrate these definitions. The following list contains links to illustrations of some unlabelled Venn graphs.

When are two Venn diagrams different?

Two Venn diagrams are isomorphic if, by a continuous transformation of the plane, one of them can be changed into the other or its mirror image. Two Venn diagrams are equivalent if they are isomorphic as plane graphs, ignoring the edge colors (that is, isomorphic as planar graphs embedded in the plane). Since curves meet transversally in simple Venn diagrams, two simple Venn diagrams are isomorphic if and only if they are equivalent.

On the other hand, a Venn diagram may be embedded in the sphere via stereographic projection. (Consider the standard tennis ball; it is the stereographic projection of Edwards' general construction for n = 4.) In some sense it is more natural to look at Venn diagrams as being embedded on the sphere. Two Venn diagrams are in the same class if they can be projected to the same spherical Venn diagram.

When considering non-simple Venn diagrams there is another elementary operation that can sometimes be applied to one diagram to get another.

Definition: A vertex traversal of a vertex v in a Venn diagram is a circular sequence C0, C1, ..., Cm of the curves adjacent to v, when read in a clockwise rotation around v. A vertex is said to be separable if its vertex traversal has the property that for some i, there is a j such that the intersection of A = {Ci, Ci+1,...,Cj-1} and B = {Cj, Cj+1,...,Ci-1} consists of one curve, say C, and in addition, |A| > 2 and |B| > 2. In the example below the black curve is the curve C. A Venn diagram is said to be rigid if it has no separable vertices.

An example of a separable vertex.

This is a Venn diagram

Splitting the separable vertex.

this is a Venn diagram

Rigid Venn diagrams are interesting because they cannot be constructed by compressing adjacent vertices of a non-rigid diagram.

How many are there?

The precise number of Venn diagrams and Venn classes has been determined by Chilakamarri, Hamburger and Pippert [CHP96b, HP96c, CHP97a] for n = 1,2,3,4, and for simple diagrams and classes if n = 5. For n = 1,2 clearly there is only one diagram.

n = 3

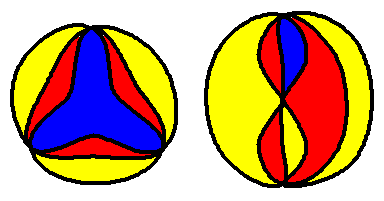

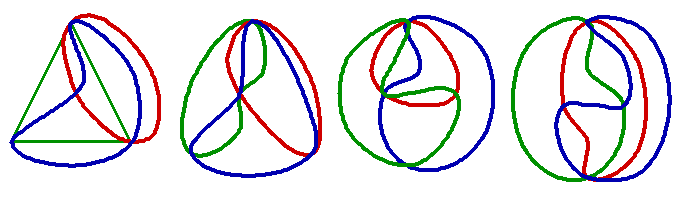

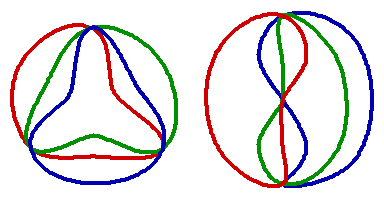

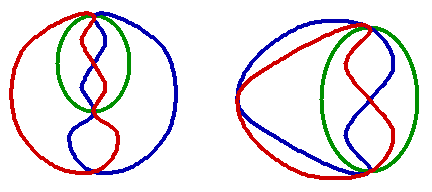

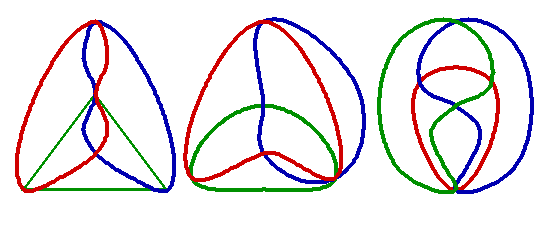

For n = 3 there are six distinct Venn classes and fourteen distinct Venn diagrams. Only one of the diagrams is simple (Class 6).

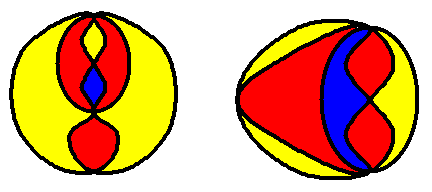

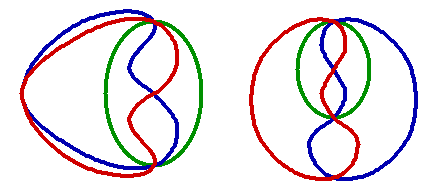

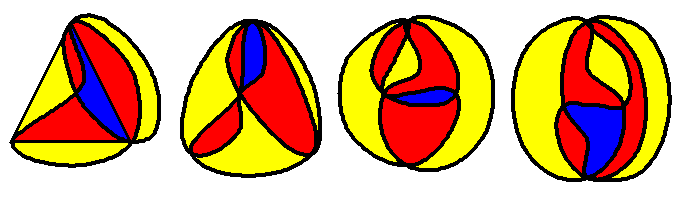

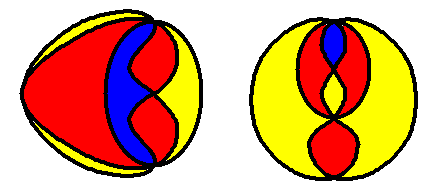

Note that classes 2 and 3 are equivalent but not isomorphic, as are diagrams #3.3 & #3.6 (and #3.4 & #3.5). It is interesting that diagrams #3.3 & #3.6 look identical with curves drawn in black and regions colored, even though the corresponding Venn diagrams are different. Diagram #3.3 appears also in [ES] (showing that it is a convex diagram). The diagrams in Class 2 have the property that each pair of curves at a point of intersection meet transversally; the diagrams of Class 3 do not have this property. Aside from the simple diagram of Class 6, only Class 2 is rigid; the other classes are non-rigid.

n = 4

For n = 4 there are two distinct simple Venn diagrams and one distinct Venn class (this was first observed by Grünbaum [Gr92a,p.8] and proven in [CHP96b]). Drawings of these two are shown in Figures 4 (a) and (b) in [Gr92a,p.7].

n = 5

For n = 5, there are 11 distinct, reducible, simple Venn classes and 12 distinct, reducible, simple Venn diagrams. Drawings of these may be found in [HP96c]. There are 8 distinct simple, irreducible Venn classes ([CHP97a]). Five of them have one convex drawing in the plane (and four of these were discovered by Grünbaum). All five can be drawn with five congruent ellipses. Thus, in total, there are 19 simple Venn classes for n = 5.

In proving these results several theorems of independent interest were proven:

Theorem H1. A simple Venn diagram for n > 2 is 3-connected.

A theorem of Whitney [Wh] states that a plane embedding of a 3-connected planar graph is unique, once the outer face has been identified. Thus, to determine whether two diagrams are in the same class, we need only try all possible embedings of one of them with each of its faces as the outer region and observe whether any of these embeddings is isomorphic to the other diagram.

Theorem H2. A simple Venn graph for n > 2 is 3-connected.

Theorem H3. No two curves of a Venn diagram belong to the same face.

n = 6

The total number of Venn diagrams for n = 6 is not known. As part of his search for 6-Venn triangles, Carroll [Ca99] reports that there are 1833 non-isomorphic simple monotone Venn diagrams with the additional property that there are no more than 6 crossings between any pair of curves.

Extending Venn diagrams

A Venn diagram is reducible if the removal of one of its n curves results in a Venn diagram with n-1 curves. The two general constructions, by their nature, both yield reducible diagrams. A Venn diagram that is not reducible is irreducible. The ellipse diagram shown below is irreducible. For a long time it was not known whether a reducible Venn diagram whose curves are ellipses existed or not; such a diagram was recently discovered by Hamburger and Pippert [HP96a].

A n-Venn diagram C is extendible if there is a curve that can be added to it to make an (n+1)-Venn diagram, C'. Diagram C' is said to be an extension of C. Winkler [Wi] makes the following two observations:

Theorem W1. For n > 1, a simple n-Venn diagram C is extendible to a simple (n+1)-Venn diagram if and only if its Venn graph G(C) is Hamiltonian.

Theorem W2. If the n-Venn diagram C is an extension of an (n-1)-Venn diagram, then C is extendible to an (n+1)-Venn diagram.

To prove the later theorem, let B be the diagram whose extension is C. By Theorem W1, The curve H added to B to get C corresponds to a Hamiltonian cycle in G(B). In G(C), curve H becomes the prism4, P, of a cycle of length 2n. Since the prism of a cycle is Hamiltonian, C is extendible.

Edwards' general construction is a manifestation of this proof of Theorem W2, where the Hamilton cycle in P is the one that alternates back and forth between the two copies of the cycle, two vertices at a time from each cycle. Venn's general construction is related but different since it uses non-prism edges (example).

Winkler's Conjecture

Winkler [Wi] conjectured that every simple Venn diagram of n curves can be extended to a simple Venn diagram of n+1 curves by the addition of a suitable curve. This conjecture was modified by Grünbaum [Gr92b] by removing the restriction of simplicity; i.e., his conjecture was that every Venn diagram is extendible. Grübaum's version was proven by Chilakamarri, Hamburger, and Pippert [CHP96], but Winkler's original conjecture remains unsettled.

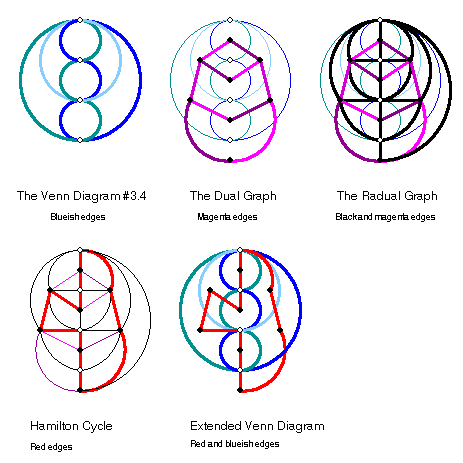

The proof of [CHP96] makes use of the radual graph, R(C) of the Venn diagram, which, for an arbitrary plane graph, is the union of the radial graph and the dual graph (see Ore [Or]). A simple example, using Venn diagram #3.4 is shown here. The strategy of their proof is first to show that R(C) is a simple triangulation and then invoke a theorem of Whitney [Wh] that any such graph is Hamiltonian. It is then easy to see that the Hamilton cycle in the radual graph can be used as the additional curve. This sufficient condition is also necessary as stated in this analogue of Theorem W1.

Theorem CHP1. For n > 1, a n-Venn diagram C is extendible to a (n+1)-Venn diagram if and only if its radual graph R(C) is Hamiltonian.

Minimum Venn diagrams

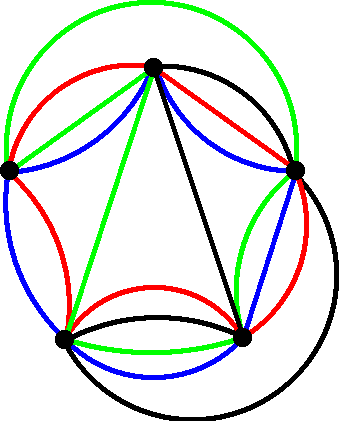

In a simple Venn diagram the number of vertices is exactly 2n-2. For non-simple Venn diagrams this number can be reduced, but a lower bound of ceiling((2n-2)/(n-1)) is readily derived from Euler's relation and the fact that at most n curves can intersect at a point. Diagrams achieving this lower bound are known for n = 2,3,4,5,6 and are said to be minimum. For n=3 diagrams #3.1 and #3.2 achieve this lower bound. For n=4 the diagram shown below achieves the lower bound (a drawing for n=5 is also available).

A Venn diagram is monotone if, for 0 < k < n, every k-region is adjacent to both a (k-1)-region and a (k+1)-region. The general construction of Edwards is monotone; the general construction of Venn is not. Examples of monotone and non-monotone Venn diagrams may be found on the "Symmetric Venn Diagram" page. The 3-Venn diagrams 3.12 and 3.13, both in the same class, show that monotonicity is a property of Venn diagrams and not Venn classes. In a monotone Venn diagram the k-regions, for any 0 < k < n, form a "cycle", in the sense that every k-region touches exactly two others, and they are connected together in a cycle under this relation [BuRu].

We can view monotonicity in another order-theoretic way. The Venn graph, G(C), defined above, could have been defined as a directed acyclic graph, with the direction indicating whether one vertex is a subset of another. Let's call this the directed Venn graph. The directed Venn graph is a spanning subgraph of the Hasse diagram (regarded as a directed graph) of the subset lattice. A Venn diagram is monotone if and only if the directed Venn graph has a unique maximum element (sink) and a unique minimum element (source).

Bultena and Ruskey [BuRu] determine, Mn, the least number of vertices in a monotone n-Venn diagram, but it is not know whether minimum Venn diagrams exist for n > 7.

Theorem B     Mn = C( n, n/2 ), where C denotes a binomial coefficient.1

Venn diagrams made from congruent curves

The first part of this section is more "geometric" than "graph theoretic". We introduce congruent Venn diagrams here because the examples are used to illustrate graph theoretic definitions.

The general constructions of Venn and Edwards outlined on the "What is a Venn Diagram" page do not share a nice property of the first two figures on the "What is a Venn Diagram" page (made from circles and triangles), namely, that they are constructed from congruent2 curves. In fact, Grünbaum [Gr92b] defines a Venn diagram to be nice if it is made from congruent curves, but we'll prefer to call them congruent Venn diagrams.

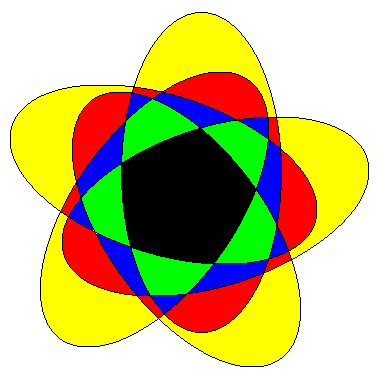

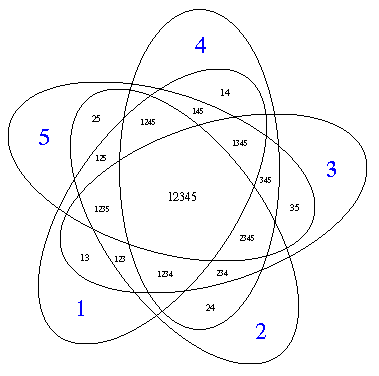

On the right, we show a beautiful congruent Venn diagram made from 5 congruent ellipses. The first such diagrams were constructed by Grünbaum [Gr75]. The diagram above labels each region (except the very smallest, where the labels wouldn't fit) with the labels of all ellipses that contain the region. In the second of the ellipse figures, the regions are colored according to the number of ellipses in which they are contained: grey = 0, yellow = 1, red = 2, blue = 3, green = 4, and black = 5. Note that the number of regions colored with a given color corresponds to the appropriate binomial coefficient: #(grey) = #(black) = 1, #(yellow) = #(green) = 5, and #(red) = #(blue) = 10.

Venn diagrams and "Revolving Door" lists

Note that some of the blue regions in the ellipse diagram above are "adjacent" in the sense that their boundary shares a common point. The sets corresponding to these regions differ by one element. The point of intersection acts like a "revolving door"; one element is removed from the subset, another element is added. Sometimes these adjacent regions form a "cycle", as in the diagram above. Another way of looking at the cycle is as the subgraph of the square6, G(C)2, of the Venn graph induced by those vertices corresponding to k-subsets. These cycles give us revolving door listings of all the k-subsets of n. Revolving door algorithms for listing various classes of k-subsets have been developed by a variety of researchers [NW]. Below we list the subsets corresponding to the 1,2,3,4-subsets (yellow, red, blue, green) in the above diagram.

1 2 3 4 5
12 13 15 25 45 14 34 35 23 24
123 135 125 245 145 134 345 235 234 124
1234 1235 1245 1345 2345

Because of the symmetry of the diagram, these circular listings have the property that they remain invariant when acted on by the cyclic permutation (1 2 3 4 5). Additonal examples of such revolving door lists may be constructed from the symmetric Venn diagrams on the next page.
